AZTEC UpFlow Reactor · UFR

Additional gold recovery.
Lower operating cost.
Cleaner tailings.

Proven UpFlow Reactor (UFR) technology for higher gold recovery, lower operating cost and reduced environmental impact, engineered to integrate on the tails stream of your gold circuit.

Circuit position
After CIL / CIP or detox
Construction
Fully bolted
Operation
Easier and more stable

The commercial case

Three outcomes that move project economics

The UFR is designed to improve the numbers that matter to operators and investors, working on the tails slurry that you already process.

Higher gold recovery

Accelerated reaction kinetics drive faster leaching and adsorption, recovering additional gold from the slurry already moving through your circuit.

Lower operating cost

Reduced detox reagent consumption lowers OPEX, while efficient energy distribution removes the need for large-scale agitation and complex control systems.

Reduced environmental impact

Lower free and WAD cyanide concentrations in the treated slurry support ICMI-aligned tailings management and reduce environmental load.

Proven UFR technology

Energy concentrated where it makes the greatest impact

Instead of relying on large-scale bulk recirculation, the UFR uses a novel counter-current flow that directs slurry back into a compact, high-intensity mixing chamber at the UFR base, where the kinetics take place.

The geometry distributes energy according to particle size and density, so each fraction of material reports to its optimal kinetic zone. The result is an energy-efficient, high-performance system that maintains stable hydrodynamics across a wide range of slurry densities.

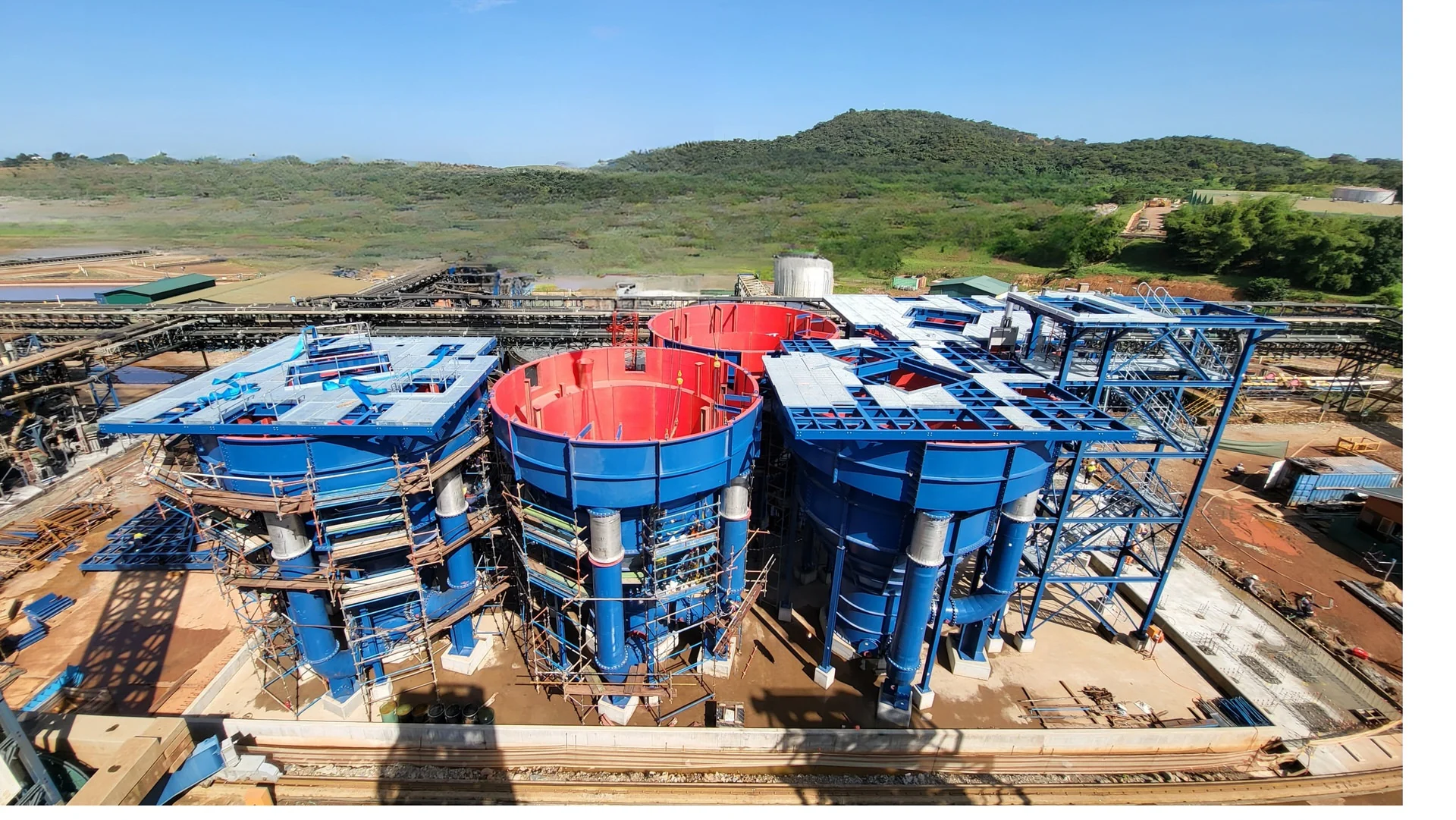

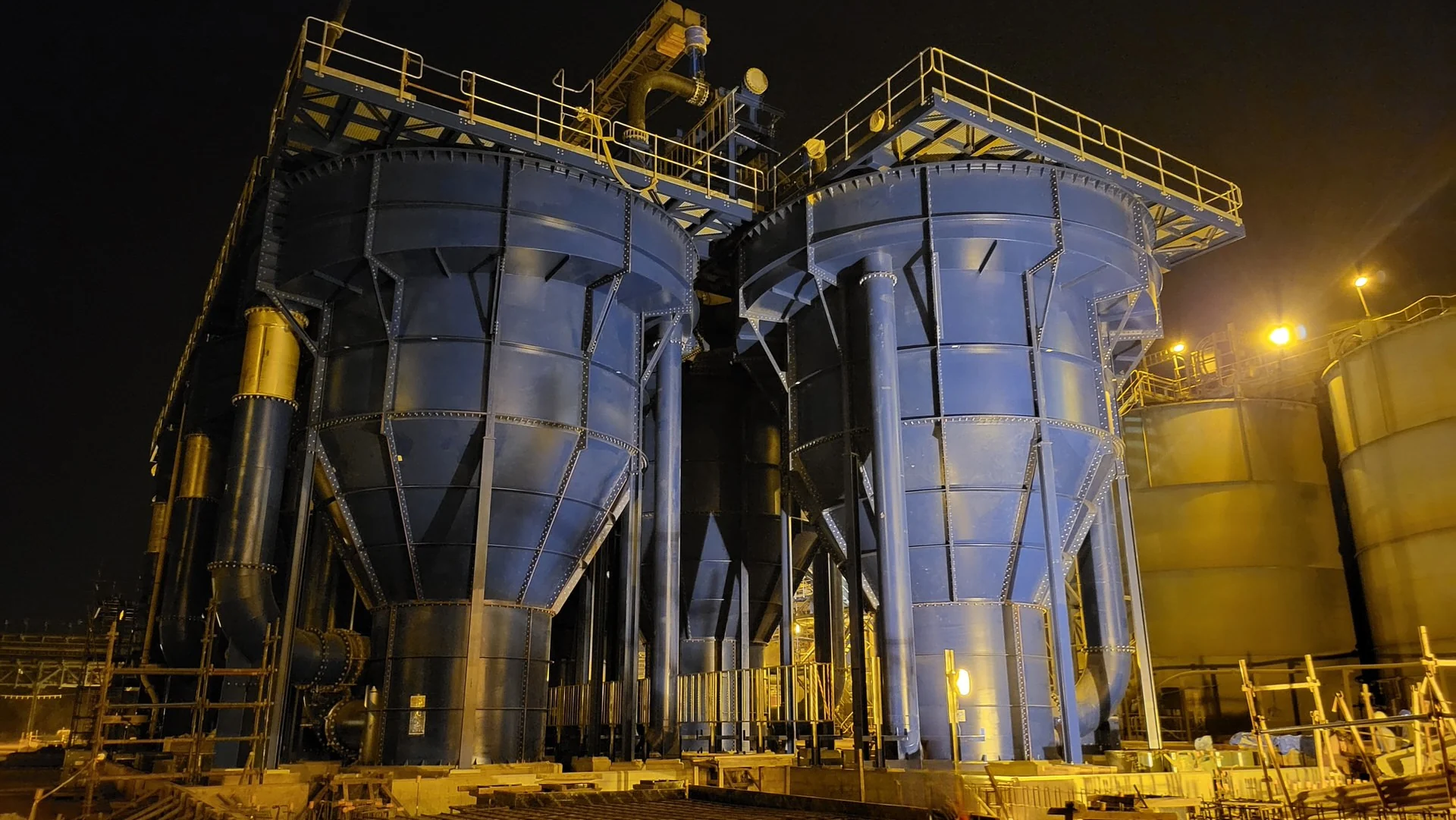

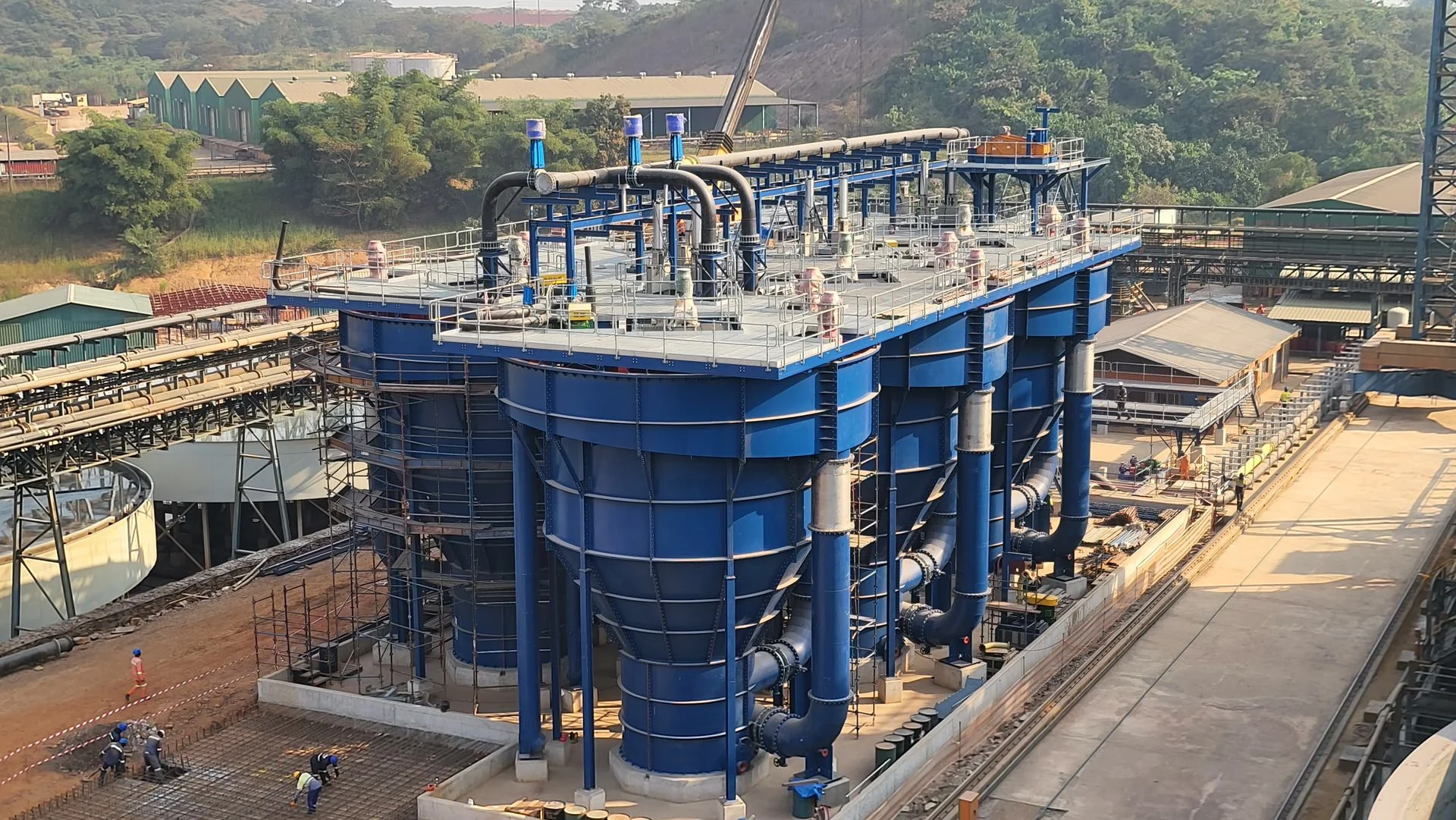

A completed AZTEC UpFlow Reactor installation within a gold processing plant, with access platforms and connecting pipework UFR · plant installation
Installed UFR circuit at Kibali Gold Mine, DRC.

Track record

Tested on operating gold circuit tailings since 2019

The UFR has been tested globally across a wide range of ore bodies and different operating gold mines. These are the campaign totals, not a single best case.

33

onsite campaigns

Bench and pilot campaigns run since 2019.

11

countries

Testwork carried out at operations worldwide.

6–53%

additional gold recovery

Range measured from tailings across those campaigns.

UFR locations. Hover or select a marker to see the country. Markers show the country, not the mine site.

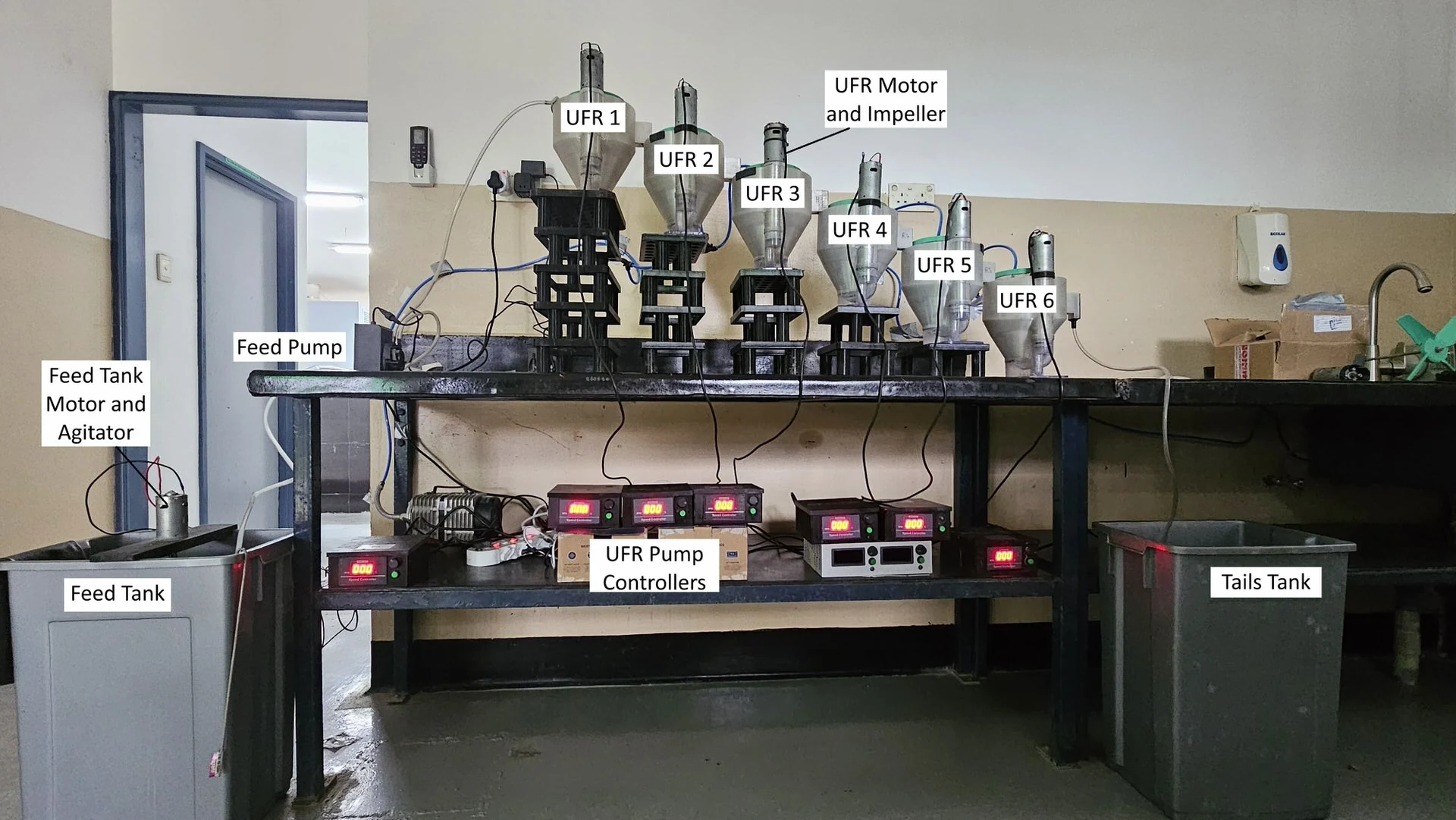

AZTEC UpFlow Reactor pilot testwork rig with six labelled small-scale UFR units, feed and tails tanks and pump controllers Pilot testwork rig
UFR pilot rig to validate performance on site.

De-risk the decision before you commit capital

Onsite testwork validates the design parameters for your orebody and circuit, and feeds the financial modelling used for feasibility and investment analysis.

It is how the recovery, cost and environmental outcomes are quantified for your operation, before any capital decision is made.

Where the UFR differs from an agitated tank

Design approach · conventional agitated tank vs UFR
CharacteristicConventional agitated tankAZTEC UpFlow Reactor
Mixing methodMechanical agitator, bulk recirculationCounter-current flow into a high-intensity base chamber
Energy distributionSpread across a large volumeConcentrated by particle size and density
Slurry density rangeConstrainedStable across a wide range
Restart after power lossCan require interventionSeamless restart
ConstructionVariesFully bolted for faster installation
MaintenanceAgitator drivetrainReplaceable pump impellers

Scroll the table sideways to compare the UFR column.

Evidence, not estimates

Performance is quantified, de-risk the decision

It is not a forecast for your circuit. Gold recovery and cyanide reduction are measured through onsite testwork, performed on your own material (slurry).

UFR gold recovery

Additional gold recovered from the as-arising tailings discharge, measured against your current circuit performance.

Quantified by testwork

Cyanide reduction

Reduction in free and WAD cyanide concentrations in the treated slurry, supporting ICMI-aligned management.

Quantified by testwork

A bolt-on scavenging circuit, not a plant redesign

The UFR is typically installed downstream of the existing CIL or CIP circuit, or downstream of cyanide detoxification and immediately upstream of the tailings storage facility. It recovers gold that would otherwise report to final tailings, without significant modification or redesign of the existing plant.

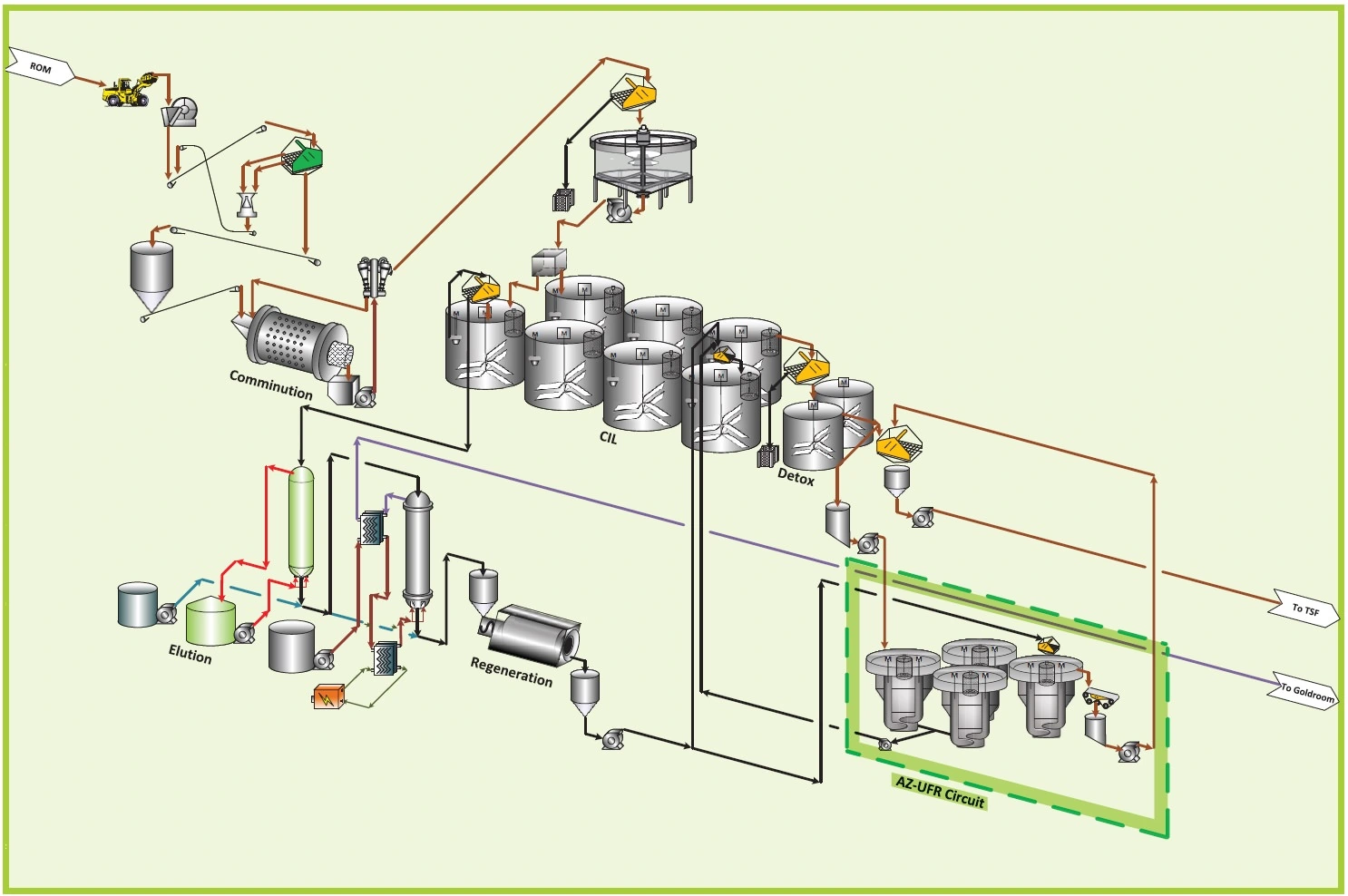

Process schematic · UFR circuit placement
Gold processing flow diagram from run-of-mine through comminution, CIL and cyanide detox, with the UFR circuit highlighted after detox before the tailings storage facility

Drawing ref: AZT-0000-PR-OFS-001 · issued for information. Supplied by AZTEC.

Engineering support across the project lifecycle

AZTEC supports the UFR from first evaluation through to long-term operation.

Financial modelling

Feasibility and investment analysis built on measured testwork data.

Onsite testwork

Validation of design parameters to de-risk the capital decision.

Custom engineering

Solutions configured for optimal integration with your plant.

Spares and aftermarket

Long-term support and spares supply for operational continuity.

AZTEC is continuously developing further technologies for mineral processing

A number of these are in development or undergoing patent processes.

Start here

See what the UFR can recover from your tailings

Request mine-specific testwork and receive a validated basis for the recovery, cost and environmental case.
