The technology · UFR

A high-performance reactor, engineered upward

The AZTEC UpFlow Reactor concentrates counter-current energy where it makes the greatest impact, delivering higher gold recovery without conventional agitators or complex control systems.

Value is lost in the tailings you already produce

Conventional gold circuits leave recoverable value in the as-arising tailings discharge, and rely on mechanical agitation that spreads energy across a large volume and adds operating cost and complexity.

Detox reagent consumption raises OPEX, and residual cyanide in the tailings adds environmental and compliance load. The opportunity is to recover more gold from material already flowing through the plant, while reducing both cost and cyanide.

Reinventing the approach to mixing

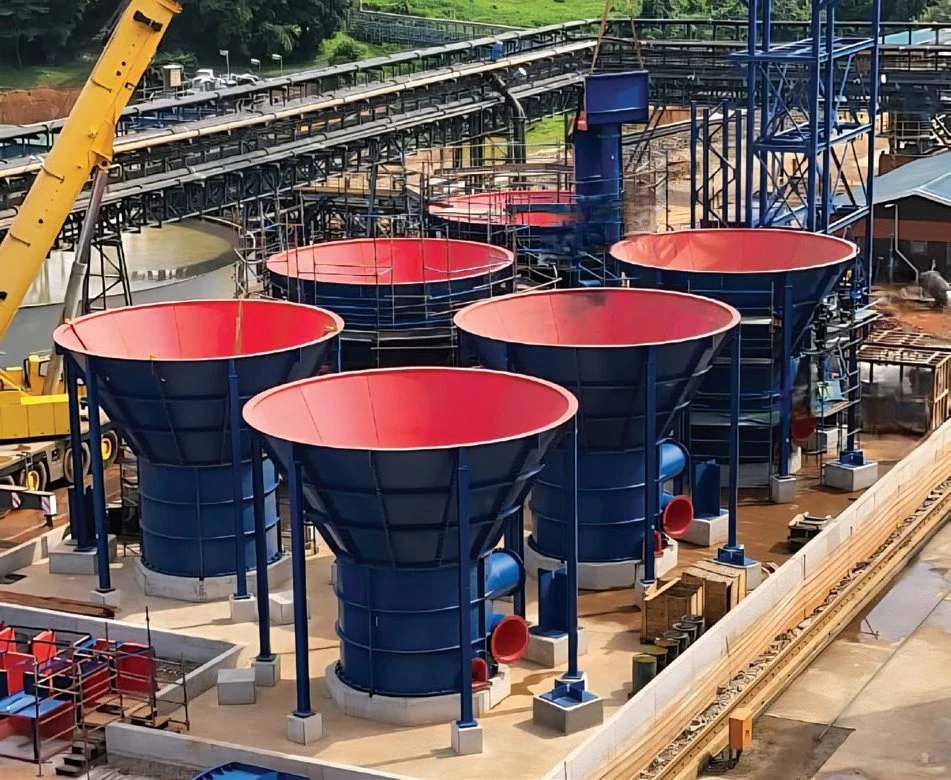

Six AZTEC UpFlow Reactor vessels during construction, showing the wide conical mouths narrowing to a base outlet UFR · vessel geometry
The conical vessel form directs slurry into a high-intensity mixing chamber at the base.

Application & plant integration

A bolt-on scavenging circuit, not a plant redesign

The UFR is typically installed as a bolt-on scavenging circuit downstream of the existing CIL or CIP circuit, or downstream of cyanide detoxification and immediately upstream of the tailings storage facility. This lets it recover gold that would otherwise report to final tailings, without significant modification or redesign of the existing processing plant. Custom engineering configures the circuit for your plant.

Process schematic · UFR circuit placement
Gold processing flow diagram from run-of-mine through comminution, CIL and cyanide detox, with the UFR circuit highlighted after detox before the tailings storage facility and goldroom

Drawing ref: AZT-0000-PR-OFS-001 · issued for information. Supplied by AZTEC.

Current positioning

AZTEC currently positions the UFR as a scavenging add-on circuit rather than a replacement for conventional CIL or CIP reactors. This lets an operation capture additional gold at relatively low incremental cost while limiting the technical and operational risk of modifying an existing plant. As commercial operating history builds, AZTEC anticipates integrating UFR stages more centrally into new plant designs, including configurations where they could replace conventional CIL tanks.

Proven benefits

What the reactor delivers for operators and investors

These benefits are established for a given operation through onsite testwork, with samples assayed by the laboratory the site already uses for routine metal accounting.

Higher productivity and revenue

Accelerated reaction kinetics enable greater throughput and higher gold recovery from the material already in your circuit.

Lower operating costs

Efficient energy distribution and improved kinetics reduce reagent usage, delivering a reduction in OPEX.

Reduced environmental impact

Reduced free and WAD cyanide concentrations in the treated slurry support ICMI-aligned tailings management and lower environmental load.

Superior process stability

Stable hydrodynamics across a wide range of slurry densities enhance reliability and plant uptime, and can remove unnecessary thickening steps.

Seamless restart after power loss

The reactor restarts seamlessly after power interruptions, reducing production losses.

Simplified maintenance

Replaceable pump impellers simplify maintenance and reduce the drivetrain complexity of conventional agitation.

Faster, cheaper installation

Fully bolted rather than welded construction enables faster and lower-cost installation, as demonstrated by the Kibali installation.

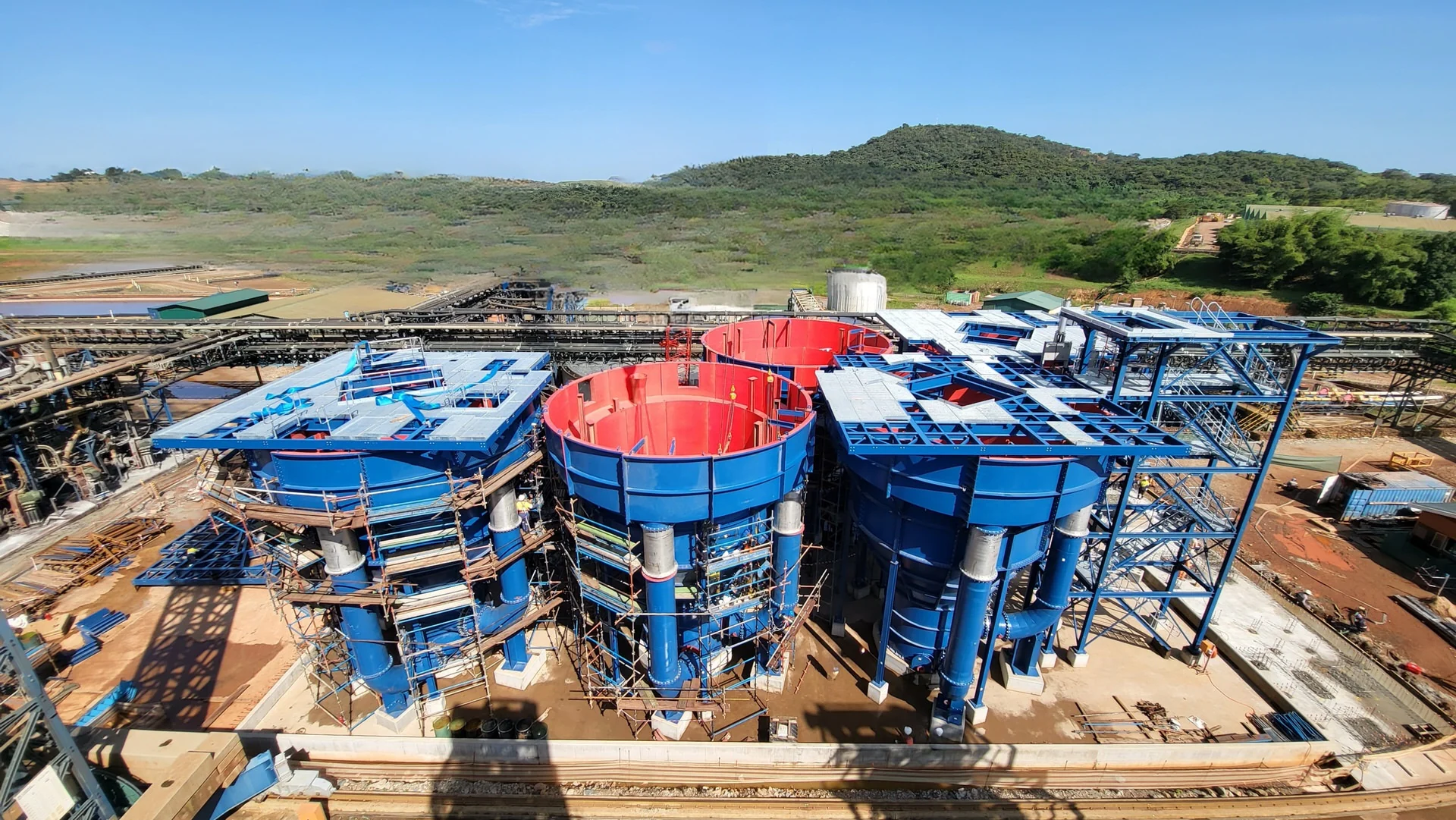

Aerial construction-stage view of multiple AZTEC UpFlow Reactor vessels Construction stage
Completed AZTEC UpFlow Reactor installation within a processing plant, with access platforms and pipework Completed on site
AZTEC UpFlow Reactor vessels at a processing plant, photographed at night In operation

Testwork & engineering support

From validation to long-term operation

AZTEC provides end-to-end support: onsite testwork to validate design parameters and de-risk capital decisions, financial modelling for feasibility and investment analysis, custom engineering for plant integration, and spares supply with long-term aftermarket support.

Ready to test the UFR on your material?

Start with mine-specific testwork to quantify the recovery, cost and environmental case for your operation.
